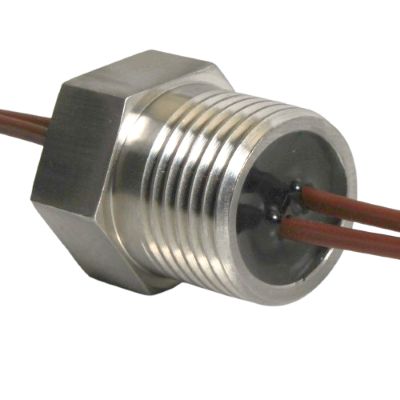

Thermocouple hermetic wire seal 2 x Type J – J.60AC684J

Thermocouple hermetic wire seal 2 x 24AWG Type J – J.60AC684J in 1/2″-20 UNF Housing 24 in. [0.6 m] Each Side

A stainless steel housing with Viton o-ring and jam nut.

100% of parts are checked for quality including dimensional inspection, helium leak test, 1000 PSI test, an electrical hipot 300 VDC 300 MOhms and visual workmanship.

The Thermocouple hermetic wire seal 2 x Type J – J.60AC684J is usually available from stock or on a short lead time.

Part Number: J.60AC684J

If you require a different thermocouple type or more wires within the feedthrough, please let us know as we have various options available.

For further information, a drawing or a quotation for J.60AC684J, please contact us.

Send An Enquiry

Thermocouple sealed feedthrough 2 x T Type J.60AC684T

Thermocouple sealed feedthrough 2 x T Type J.60AC684T
