UHV Coaxial Connector Feedthroughs
UHV Coaxial connector feedthroughs consist of SMA, BNC, MHV, Type N and numerous other coaxial designations for UHV systems.
Whatever your UHV Coaxial connector feedthrough requirements, please contact our knowledgeable team today for further information or a quotation.
UHV Coaxial Feedthroughs
Standard coaxial connectors offer an electrical continuity, through the innermost conductor, while being electrically isolated from the vacuum flange and grounding system. Our coaxial connectors can also have a Floating Shield feature, which offers additional isolation from the chamber ground. These designs can be utilized with standard Mil-Spec airside connectors. We also offer Double-End versions where a connector can be used inside the vacuum chamber.
UHV Coaxial Connector Feedthrough Types
- BNC UHV Coaxial connector feedthroughs allow hermetic connections to your BNC-style coaxial cables in UHV applications. Double or single ended. Non-constant floating shield or non-constant grounded shield.

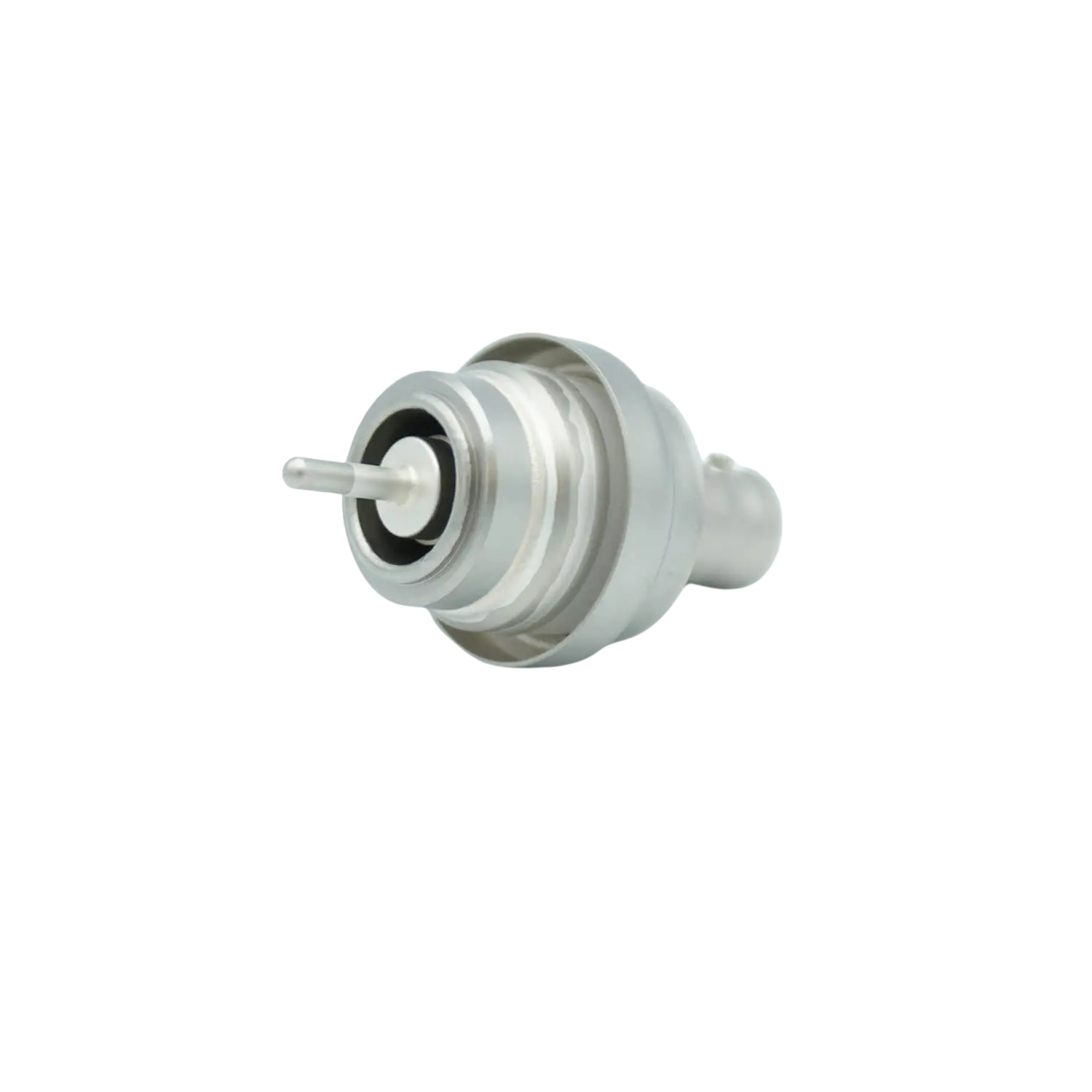

- MHV UHV Coaxial connector Feedthroughs available in single or double ended. Non-constant floating shield or non-constant grounded shield.

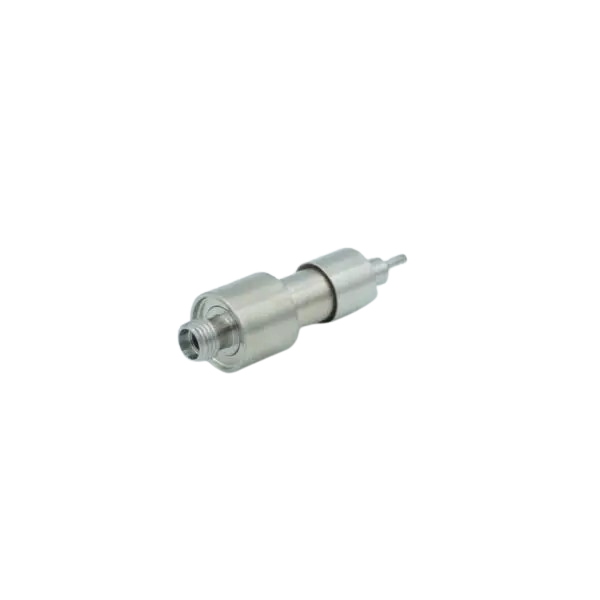

- SMA UHV Coaxial connector Feedthroughs available in single or double ended. Non-constant floating shield or non-constant grounded shield.

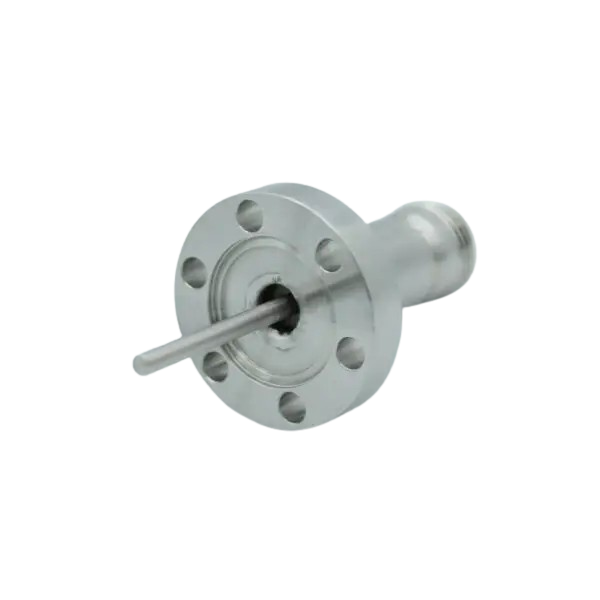

- Type-N UHV Coaxial connector feedthroughs come in a variety of styles with options in impedance, shielding, and mounting.

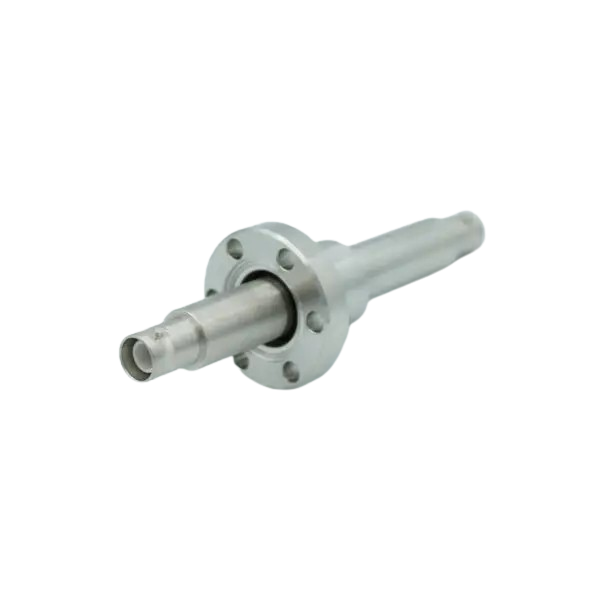

- SHV(Safe High Voltage) UHV Coaxial connector feedthroughs are rated in 5kV, 10kV and 20kV. These Feedthroughs come in a variety of styles including double & single-ended, & exposed conductors.
- SHV-B UHV Coaxial connector feedthroughs are bakeable, high-temp feedthroughs, designed to be used with high-temp connectors for your most challenging applications.

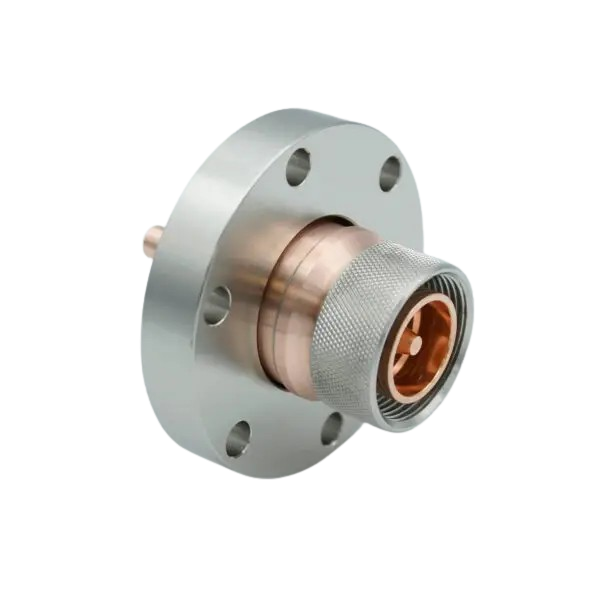

- 7/16 DIN UHV Coaxial connector feedthroughs provide hermetic solutions for your high-powered RF connectors.
- Triaxial UHV Coaxial connector feedthroughs available as weldable or Conflat Flange, with or without the airside connector.
Enquire About UHV Coaxial Connector Feedthroughs
"*" indicates required fields
If you would like further information about UHV coaxial connector feethroughs, a sample or a quotation, please contact: [email protected] or phone 01494 791336. Our sales team will be happy to assist you with your project.
